UreSil is a medical device development, manufacturing and distribution company that serves the needs of physicians who perform minimally invasive procedures. Through innovation and relationships, we provide high-quality devices that improve patient care and reduce overall treatment costs.

Origin® Drainage Catheter

  • The Origin Catheter is the culmination of years of research and development.
  • Origin now features a clear hub for better visualization, an improved catheter material for insertion ease, an improved tip taper on larger sizes, the largest holes currently available on the market and depth marks that can confirm catheter position. Origin will be comprised of all general purpose “H” suffix codes, and provides an idea of the innovation we are providing in the drainage market.
  • Every Origin General Purpose Catheter (GP) includes the following; Catheter, Metal Cannula, Flexible Cannula, Trocar and Hydrophilic Coating. The 6F catheter also includes an obturator.
  • Origin Catheters are available in 6F through 16F diameters.
Product Code Size/Length Units/Box Stiffness
GPL2-0625H 6F / 18 cm 5 Origin
GPL2-0830H 8F / 21 cm 5 Origin
GPL2-1030H 10F / 21 cm 5 Origin
GPL2-1230H 12F / 20 cm 5 Origin
GPL2-1430H 14F / 21 cm 5 Origin
GPL2-1630H 16F / 21 cm 5 Origin
Product Code Size/Length Units/Box Stiffness
GPL2-0830HB 8F / 21 cm 5 Regular
GPL2-1030HB 10F / 21 cm 5 Regular
GPL2-1230HB 12F / 20 cm 5 Regular
GPL2-1430HB 14F / 21 cm 5 Regular
GPL2-1630HB 16F / 21 cm 5 Regular

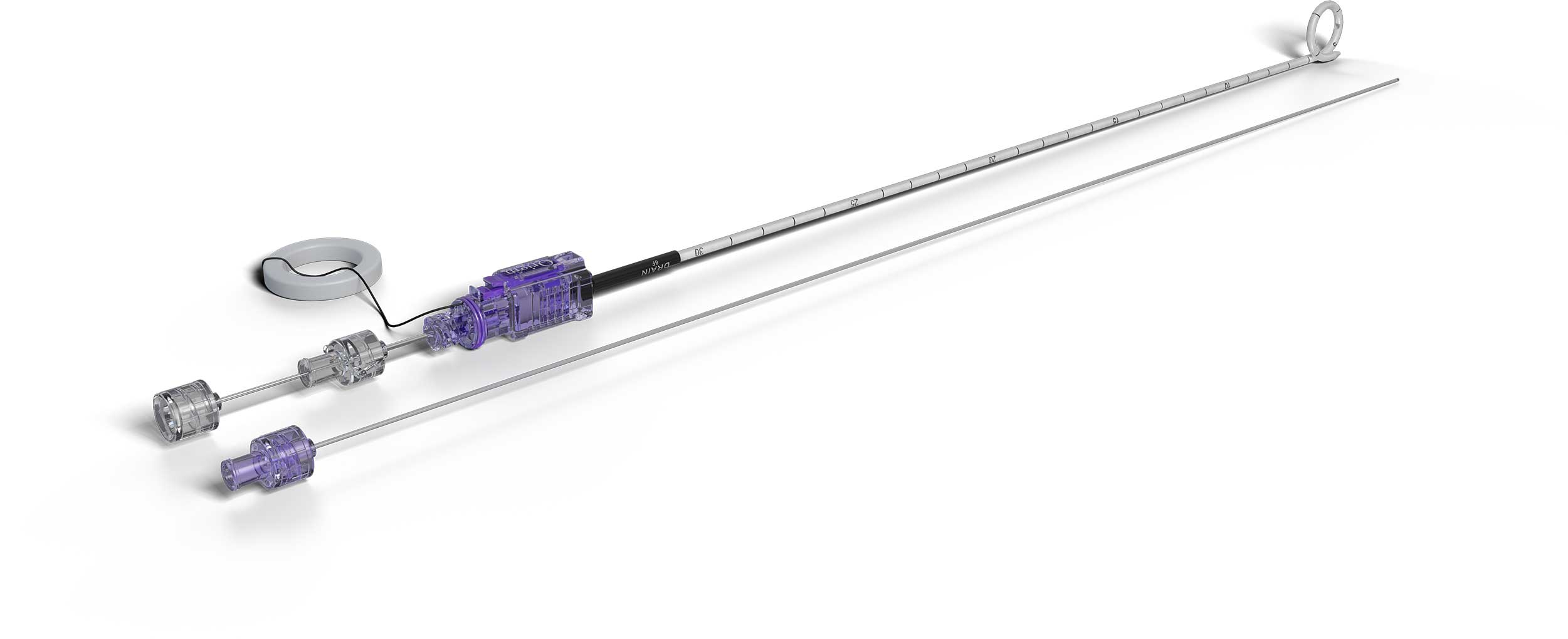

Mini-Pigtail® Drainage Catheter with locking pigtail

  • UreSil’s “MiniPig” (MP) Catheter is very similar to the General Purpose Catheter but is designed with a reduced size pigtail that presents a smaller footprint within an abscess, and is generally used for abscesses near critical structures.
  • Every Mini Pig General Purpose Catheter includes the following; Catheter, Metal Cannula, Flexible Cannula, Trocar and Hydrophilic Coating. The 6F catheter also includes an obturator.
  • MiniPig Catheters are available in 8F through 10F diameters in both durometers.
    6F available in the Origin® material.
Product Code Size/Length Units/Box Stiffness
MPL2-0625H 6F / 20 cm 5 Origin
MPL2-0830H 8F / 25 cm 5 Origin
MPL2-1030H 10F / 25 cm 5 Origin
Product Code Size/Length Units/Box Stiffness
MPL2-0830HB 8F / 25 cm 5 Regular
MPL2-1030HB 10F / 25 cm 5 Regular

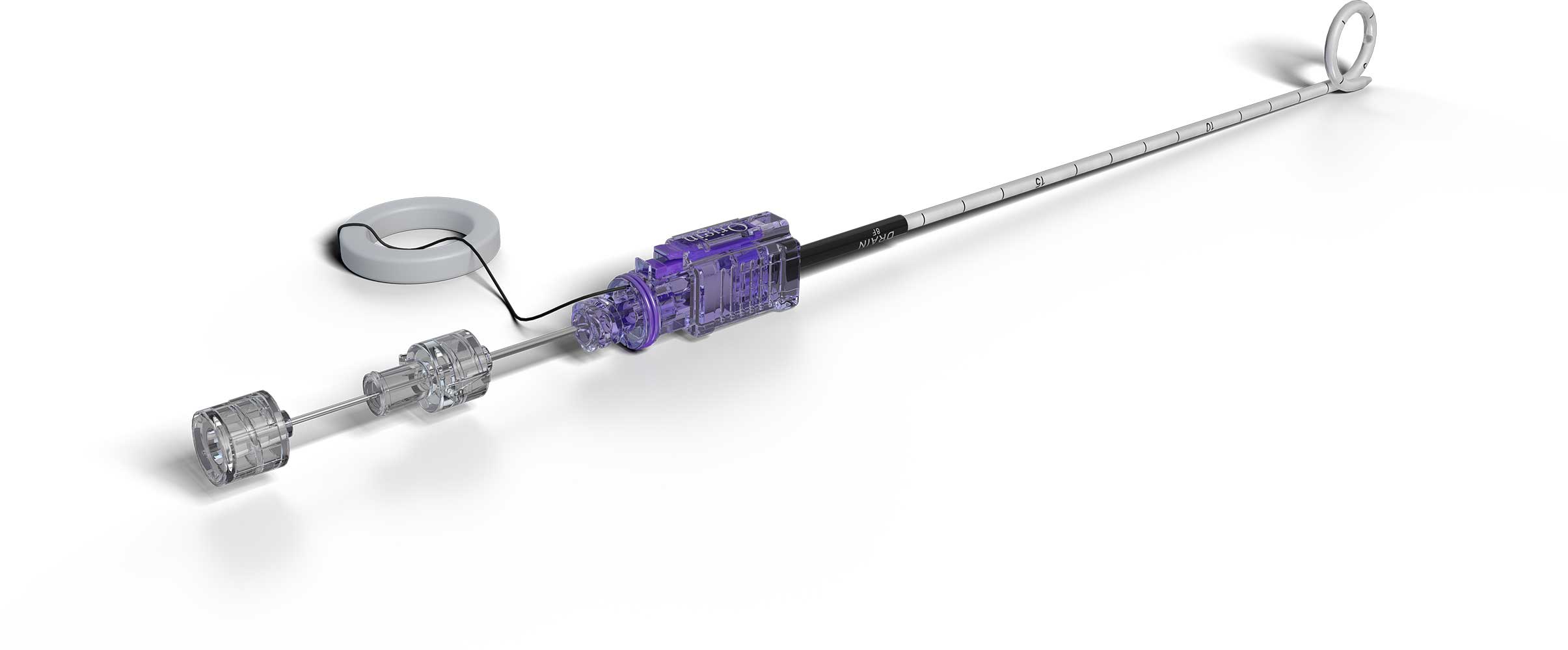

Short Mini-Pigtail® Drainage Catheter with locking pigtail

  • UreSil’s Short Mini Pig Catheter (KDL) has an overall length of only 17cm.
  • This catheter was developed to assist with the drainage of abscesses closer to the surface or in patients with smaller anatomy.
  • Every KDL Catheter includes the following; Catheter, Metal Cannula, Trocar and Hydrophilic Coating.
  • Short MiniPig Catheters are available in 8F through 10F diameters in both durometers. 6F available in the Origin® material.
Product Code Size/Length Units/Box Stiffness
KDL2-0617H 6F / 12 cm 5 Origin
KDL2-0817H 8F / 12 cm 5 Origin
KDL2-1017H 10F / 12 cm 5 Origin
Product Code Size/Length Units/Box Stiffness
KDL2-0817HB 8F / 12 cm 5 Regular
KDL2-1017HB 10F / 12 cm 5 Regular

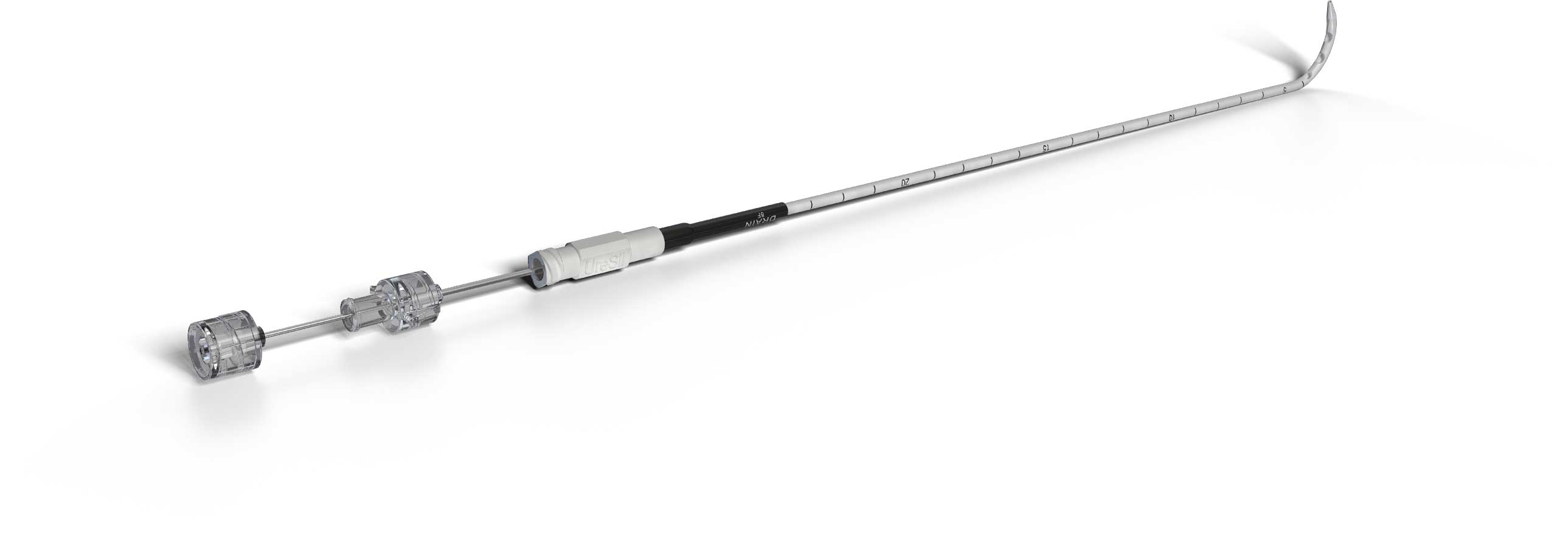

General-Purpose Drainage Catheter with “J” tip

  • UreSil’s Non-Locking General Purpose Catheter (GPJ) offers all of the features of our General Purpose Catheters but in a non-locking format.
  • Every GPJ Catheter includes the following; Catheter, Metal Cannula, Trocar and Hydrophilic Coating.
  • GPJ Catheters are available in 8F through 12F in both durometers. A 6F is available in our Origin® material and 14F is available in our regular material.
Product Code Size/Length Units/Box Stiffness
GPJ-0620H 6F / 15 cm 5 Origin
GPJ-0825H 8F / 19 cm 5 Origin
GPJ-1025H 10F / 19 cm 5 Origin
GPJ-1225H 12F / 19 cm 5 Origin
Product Code Size/Length Units/Box Stiffness
GPJ-0825HB 8F / 19 cm 5 Regular
GPJ-1025HB 10F / 19 cm 5 Regular
GPJ-1225HB 12F / 19 cm 5 Regular
GPJ-1425HB 14F / 20 cm 5 Regular

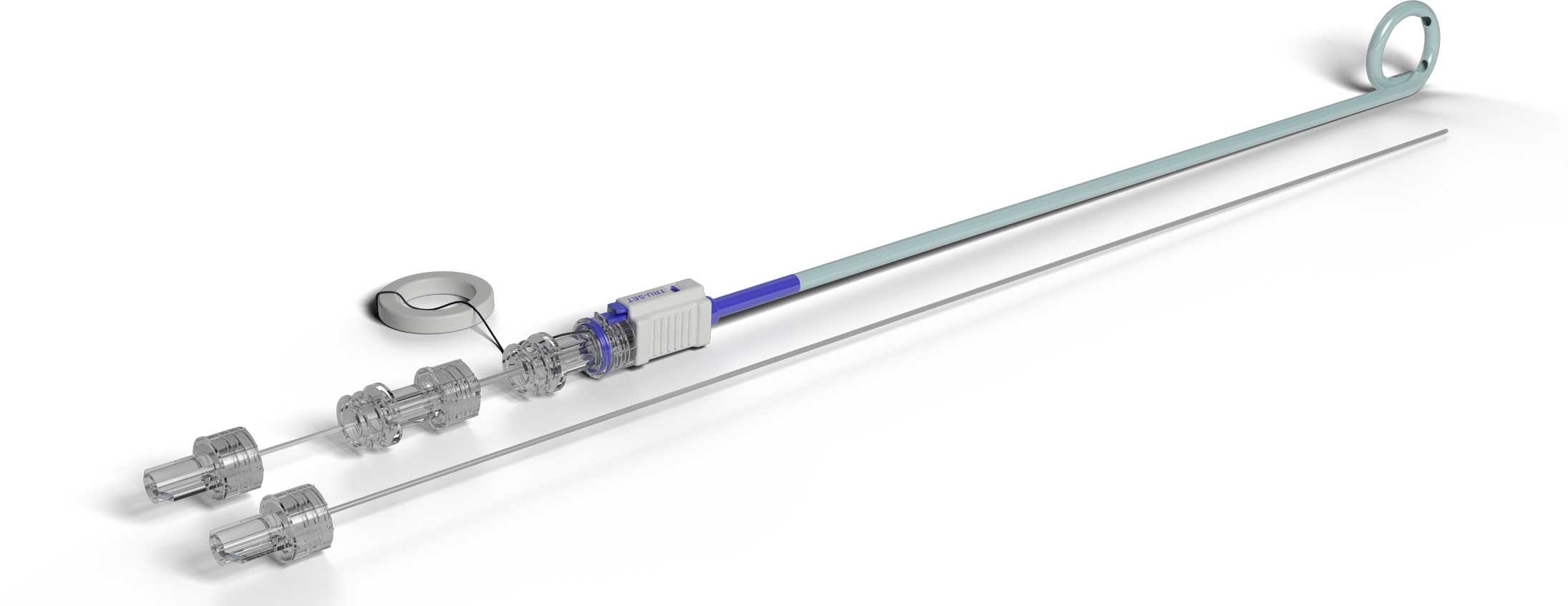

ULTI-flo® TRU-SET large I.D. with aspiration flush (A-F) Adapter/pigtail

  • UreSil’s Ulti-flo Locking Catheter (LBL) was designed to solve a common problem with flow dynamics in abscess drainage.
  • The internal diameter of a standard luer connection is roughly equivalent to the internal diameter of a 12F catheter. When a 14F or 16F catheter with standard luer lock is employed, the inner lumen of the luer lock creates a choke point for drainage.
  • The LBL utilizes a patented hub that maintains 14 or 16F drainage from the catheter all the way to the the drainage bag. This maximized lumen minimizes the potential for blockages.
  • Every LBL kit comes with the following: Catheter, Metal Cannula, Trocar, Flexible Cannula, Large Bore Aspiration/ Flush Adapter and Large Bore Syringe Adapter.
  • UreSil’s Ulti-flo catheters are available in 14F and 16F diameters.
Product Code Size/Length Units/Box Stiffness
LBL2-1430HB 14F / 19 cm 5 Regular
LBL2-1630HB 16F / 20 cm 5 Regular

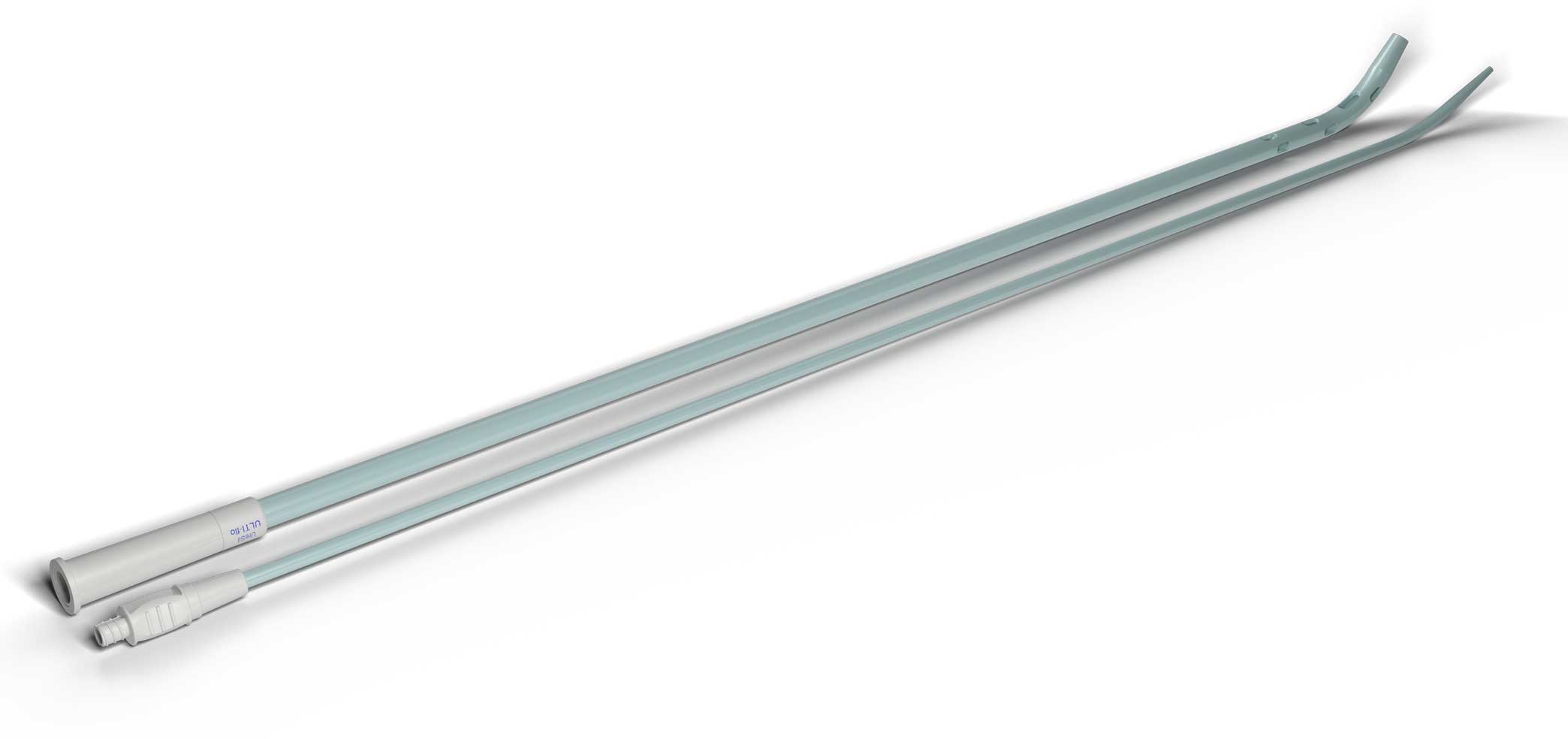

ULTI-flo® 20+ General Purpose Catheter (non-locking)

  • UreSil’s 20+ Non-Locking Catheter (LBNL) was born from the necessity to provide 20F, 24F and 28F catheters for interventional drainage. Ulti-flo catheters possess a radiopaque stripe to increase visualization during introduction and are made of a softer material that provides flexibility and comfort while dealing with large abscesses or other fluids such as pancreatic pseudocysts.
  • Every set includes the following: Catheter and Introducer that accommodates either .035″ or .038″ guidewire.
Product Code Size/Length Units/Box Stiffness
LBNL-2050H 20 F / 41 cm 5 Firm
LBNL-2450H 24 F / 41 cm 5 Firm
LBNL-2850H 28 F / 41 cm 5 Firm

1X2F4
